About This Item

Item Description:

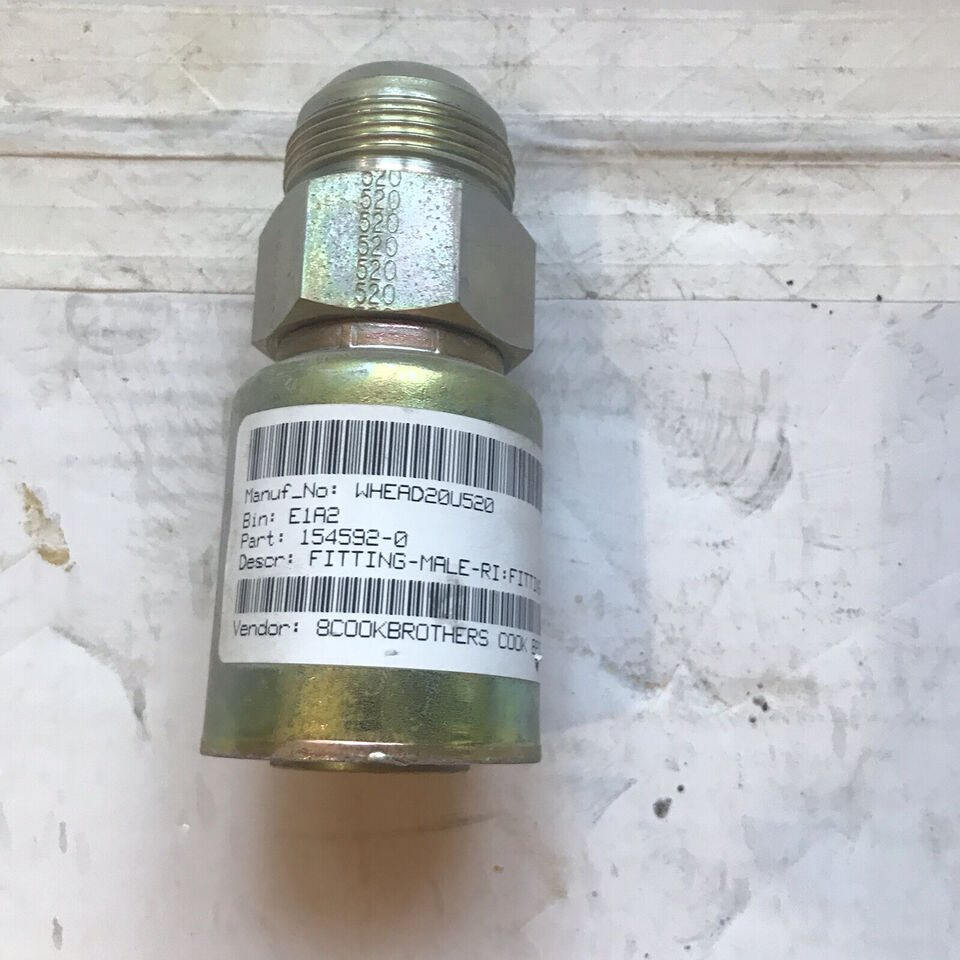

EATON Weatherhead Coll-O-Crimp 20U-520 Male Rigid Fitting, SAE 37 Degree. Condition is "New". Shipped with USPS First Class. Specifications Item Type Fitting Assembly Hex Size 1 11/16 in Threads per Inch 12 Hose I.D. 1 1/4 in Tube O.D. 1 1/4 in Hex Size 1 1 11/16 in Finish Zinc Clear Trivalent Chromate End Gender 1 Male Thread Size 1 5/8-12 Fitting Type JIC Male Rigid Origin Hose to Tube Ftg Rigid/Swivel Rigid Hose Dash Size 20 Thread Sealant No Compatible Tube O.D. 1.25 Overall Length 4.6 in End Type 2 Line/Hose/Tube Compatible Hose H115 H039 H104 H017 H114 H146 H245 H324 H425 H325 H545 H145 H350 H9949 H6002 (-08, -12, -16) H0105 H0106 H116 H1571 H1776 H1777 H1812 H1981 H1982 H900 Series "U" Series Hose ID 1 1/4 in Hose Cut-Off Factor 2.31 in End Type 1 JIC 37 Compatible Hose I.D. 1.25 Fitting Angle Straight Material Carbon Steel Style Crimp Hole Dia. 1.02 in Weight 1.346 LB EAN or UPC 725975026878
