About This Item

Item Description:

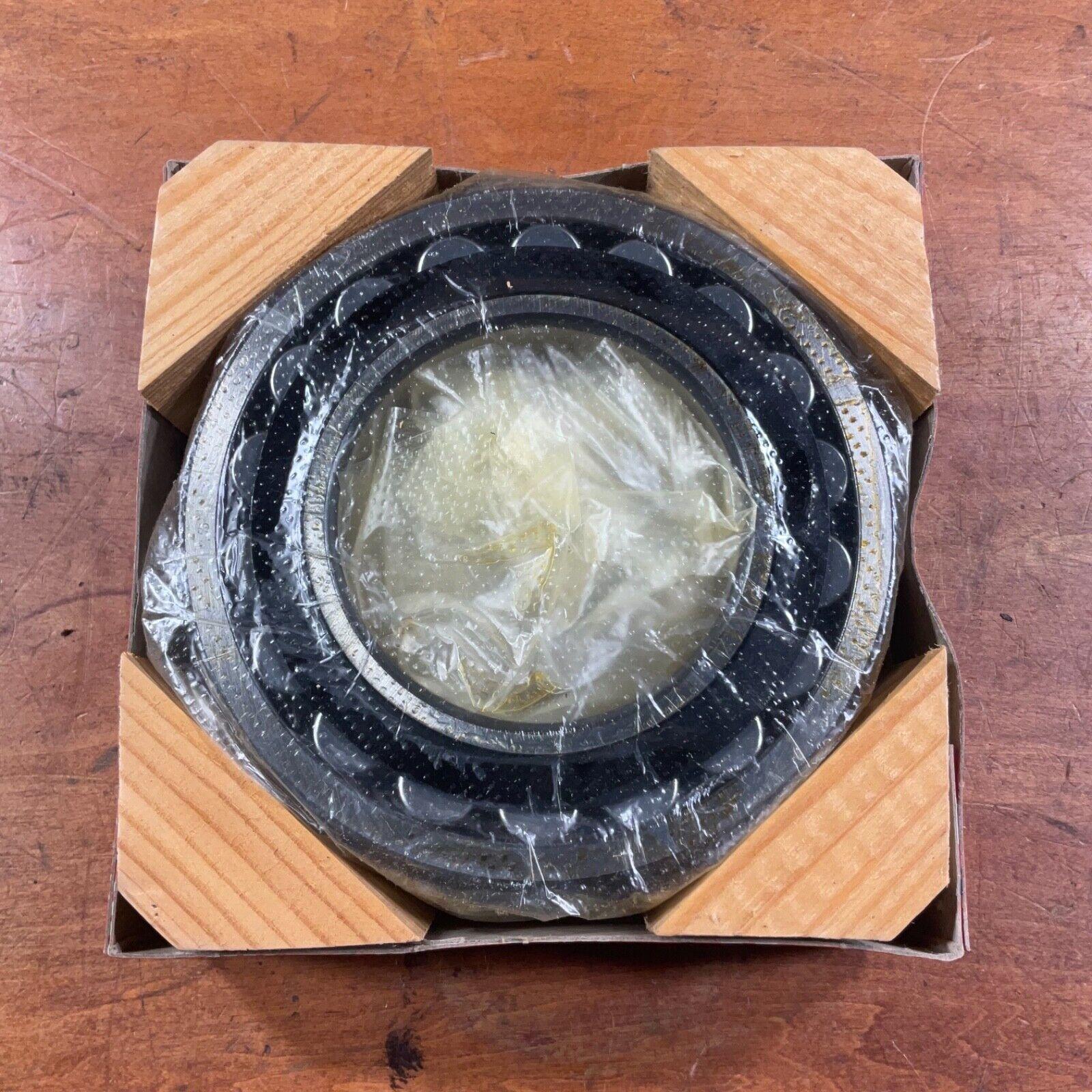

NOS FAG 23218ES Spherical Roller Bearing TVPB.C3  90mm X 160mm X 52.4mm



Main specifications

BrandFAGItem Number23218ES.TVPB.C3 FAGCategorySpherical Roller BearingWeight and DimensionsInner (d) MM90Outer (D) MM160Width (B) MM52,4Weight (kg)4.27Product PropertiesBoreC - Cylindrical BoreLubrication EnhancementW33 - Lubrication Groove and 3 HolesSealNo SealCage TypeP - Plastic Molded CageRadial Internal PlayC3 Internal Play (Higher than Cn)PrecisionStandard PrecisionHeat StabilizationNo Heat Stabilization - Temperatures up to 120 °CVibrating Screen ExecutionNon Vibrating Screen ExecutionSuffix descriptionEMaximum Capacity DesignSLubrication Groove And Three Holes In Bearing Outer RingTVPBSolid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner RingC3Internal Clearance Larger Than NormalDetailedThe 23218ES.TVPB.C3 FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
