Item Description:

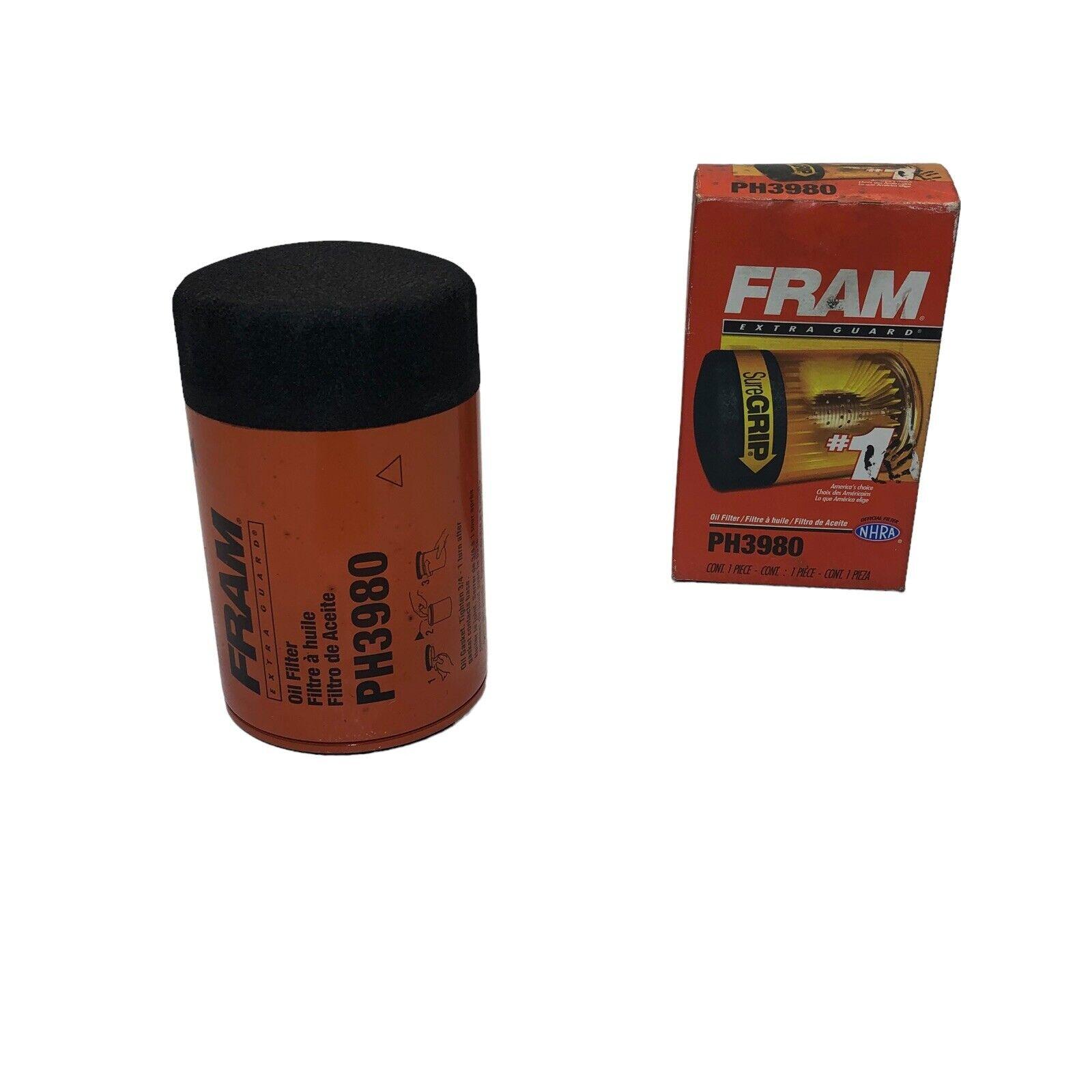

Fram PH3980 Engine Oil Filter
Engine Oil Filter
SPECIFICATIONS: Anti-Drain Back Valve: Yes
Burst Pressure: 310.000 PS
Bypass Relief Valve: No
Filter Media Material: Cellulose/Synthetic Blend
Filter Type: Spin-On Canister
Gasket Inside Diameter: 2.469 IN
Gasket Outside Diameter: 2.828 IN
Gasket Thickness: 0.078 IN
Gasket Type: Base
Height: 4.961 IN
Inside Thread Diameter: M18x1.5
Marine Approved: No
Micron Rating: 8.000 Microns
Non Slip Grip: Yes
OEM Interchange: CO447A, CPH3980, D487, DL3980, DW-4011, E4011, EAO23, F-173, FE204, FL-402, FX1016, G-77, GM52, GP48, K25, L-319, L24011, L24011, L24011, L297, L52, LF-51HP, LF393F, LF782, LFR-8782, M1-201A, M4011, MGL3980, MO3980, MO4011, MO51
Outside Diameter: 2.984 IN
Thread Size: Metric
Torque Nut: No
This item may interchange to the following part numbers from other brands. This is provided for reference only and does not guarantee that the part your are buying is identical to the part numbers from the brands listed below. To confirm that this part fits your vehicle, enter your vehicles Year, Make, Model, Trim and Engine in the Compatibility Table.ALLIANCE ABP/N10G-LF782
AM GENERAL 6004104
AUTO EXTRA 61851036
AUTOPRO 2036
AUTOWIZE A15
AWARD AOF-173
BALDWIN B35-S
BIG A 92036
BOSCH 72210
BRAVO B173
CAM2 C4011
CASITE CF52
CASTROL CAS3980
CATERPILLAR 3I-1114
CENEX CO447A
CRUISEMASTER 218
DYNALIFE CN-3535
GENERAL MOTORS 25325403
HYSTER 375588
INSTALLER EDGE AL3980
ISUZU 8-25171-377-0
NAPA 1190
OMC 502903
PARTS MASTER 61036BP
PRO-TEC 120
ROCK HILL 61036
SAFETY-KLEEN 110
SEARS 45203
SIERRA 18-7879
SILVERLINE 21036
FRAM Extra Guardr Oil Filters with SureGripr deliver advanced engine protection for everyday drivers who perform routine oil changes at OE recommended intervals. Extra Guard is engineered for extended performance that meets all manufacturers' recommended change intervals. No matter what you drive, or what motor oil you use, FRAMr has a filter for you.
Additional Specifications:Each Width (Inches): 3.098
Each Weight (Gross Pounds): 0.655
Filter Media Material: Cellulose/Synthetic Blend
Bypass Relief Valve: No
Anti-Drain Back Valve: Yes
Hazardous Material Flag Y/N: N
Gasket Inside Diameter (IN): 2.469
Gasket Type: Base
Each Height (Inches): 5.072
Filter Type: Spin-On Canister
Burst Pressure (PS): 310.000
Comment: Spin-on Oil Filter
Country of Origin (Primary): US
Gasket Outside Diameter (IN): 2.828
Each Length (Inches): 3.098
Gasket Thickness (IN): 0.078
Fits: 80-83 Buick Skylark, 80-83 Chevrolet Citation, 80-83 Oldsmobile Omega, 80-83 Pontiac Phoenix, 81-82 Checker Marathon, 81 Chevrolet Camaro, 81-90 Chevrolet Caprice, 81-87 Chevrolet El Camino, 81-85 Chevrolet Impala, 81-83 Chevrolet Malibu, 81-88 Chevrolet Monte Carlo, 81-87 GMC Caballero, 81 Pontiac Grand LeMans, 81 Pontiac LeMans, 82-85 Buick Century, 82-85 Buick Regal, 82-89 Buick Skyhawk, 82-86 Cadillac Cimarron, 92-96 Chevrolet Caprice, 82-91 Chevrolet Cavalier, 82-85 Chevrolet Celebrity, 82-04 Chevrolet S10, 82-90 GMC S15, 82-84 Oldsmobile Cutlass Calais, 82-85 Oldsmobile Cutlass Ciera, 82-84 Oldsmobile Cutlass Supreme, 82-88 Oldsmobile Firenza, 82-85 Pontiac 6000, 82-83 Pontiac J2000, 87-88 Buick Century, 87-88 Chevrolet Celebrity, 83-94 Chevrolet S10 Blazer, 83-91 GMC S15 Jimmy, 87-89 Oldsmobile Cutlass Ciera, 87-91 Pontiac 6000, 88-93 Buick Regal, 90 Chevrolet Celebrity, 84 Pontiac Fiero, 84-85 Pontiac J2000 Sunbird, 85 Buick Electra, 85 Cadillac Commercial Chassis, 85 Cadillac DeVille, 85 Cadillac Fleetwood, 85-99 Chevrolet Astro, 85-86 Chevrolet C10, 85-86 Chevrolet C20, 85-95 Chevrolet G10, 85-95 Chevrolet G20, 85-96 Chevrolet G30, 85-86 Chevrolet K10, 85 Chevrolet K20, 85-86 GMC C1500, 85-86 GMC C2500, 85-95 GMC G1500, 85-95 GMC G2500, 85-95 GMC G3500, 85-86 GMC K1500, 85 GMC K2500, 85-99 GMC Safari, 85 Oldsmobile 98, 88-96 Oldsmobile Cutlass Supreme, 86 Pontiac Fiero, 85-86 Pontiac Parisienne, 88-98 GMC C1500, 88-95 GMC C2500, 88-99 GMC K1500, 01 GMC Safari, 86 Pontiac Bonneville, 88 Pontiac Fiero, 86-96 Pontiac Grand Prix, 86 Pontiac Sunbird, 87-91 Chevrolet Beretta, 87-91 Chevrolet Corsica, 95-97 Chevrolet Monte Carlo, 87 Chevrolet R10, 87-88 Chevrolet R20, 87 Chevrolet V10, 88-00 GMC K2500, 87 GMC R1500, 87 GMC R2500, 87 GMC V1500, 87-89 Oldsmobile Cutlass Cruiser, 87-91 Pontiac Tempest, 88-98 Chevrolet C1500, 88-95 Chevrolet C2500, 89-92 Chevrolet Camaro, 88-99 Chevrolet K1500, 88-00 Chevrolet K2500, 88-00 Chevrolet K3500, 88-00 GMC K3500, 88-92 Pontiac Firebird, 94-96 Chevrolet Impala, 90-97 Chevrolet Lumina, 90-94 Chevrolet Lumina APV, 90-99 Chevrolet P30, 90-99 GMC P3500, 90-94 Oldsmobile Silhouette, 90-94 Pontiac Trans Sport, 91-05 Chevrolet Blazer, 91-05 GMC Jimmy, 91-04 GMC Sonoma, 91 GMC Syclone, 91-94 Oldsmobile Bravada, 92-94 Chevrolet Commercial Chassis, 92-96 Chevrolet Corvette, 92-99 Chevrolet K1500 Suburban, 92-99 Chevrolet K2500 Suburban, 92-99 GMC K1500 Suburban, 92-99 GMC K2500 Suburban, 92-93 GMC Typhoon, 92-00 GMC Yukon, 96-01 Oldsmobile Bravada, 94-96 Cadillac Commercial Chassis, 94-96 Cadillac Fleetwood, 94-96 Buick Commercial Chassis, 94-96 Buick Roadmaster, 95-96 AM General Hummer, 95-00 Chevrolet Tahoe, 96-99 Chevrolet Express 1500, 96-99 Chevrolet Express 2500, 96-99 GMC Savana 1500, 96-99 GMC Savana 2500, 97-00 Isuzu Hombre, 99-00 Cadillac Escalade, 99-01 Chevrolet Silverado 1500, 99-02 GMC Sierra 1500, 00-05 Workhorse P30
This Item May Interchange With The Following:
110 1190 120 18-7879 2036 21036 218 25325403 375588 3I-1114 45203 502903 6004104 61036 61036BP 61851036 72210 8-25171-377-0 92036 A15 ABP/N10G-LF782 AL3980 AOF-173 B173 B35-S C4011 CAS3980 CF52 CN-3535 CO447APF 51PF51PF 52PF52PF52EB35-SB35SLFP550051P550051LF3486 LF3554LF42503LF782LF782JLFR-83486LFR-8782PH3980AZ PH3535PH3980PH3980FPTG3980LF234LF393TY15135PH51A FL 402Fl40210361190L20173L24011QS39805103651190
