About This Item

Item Description:

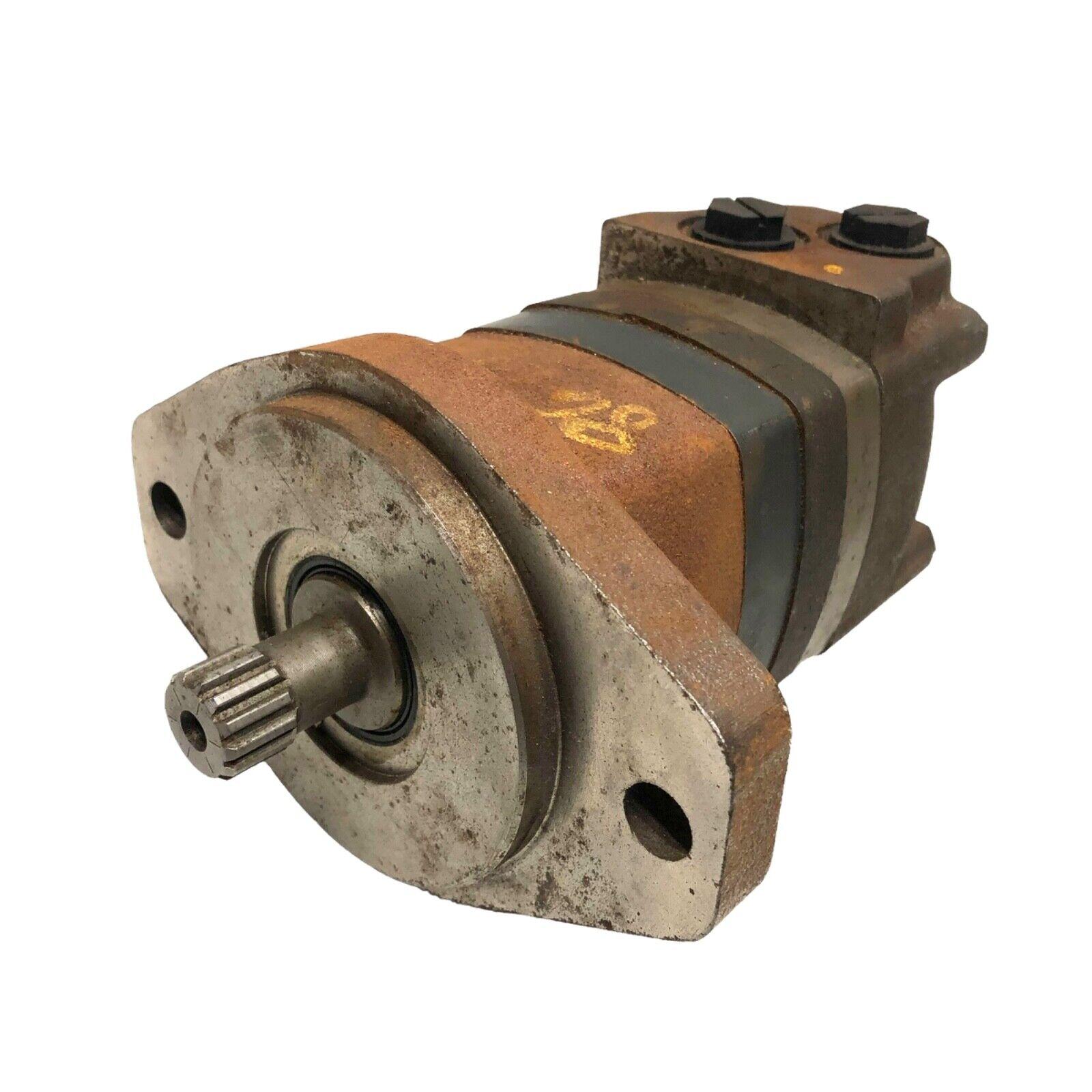

Char-Lynn 104-1216-006 Hydraulic Motor 7/8" SAE B Splined 7/8-14 O-Ring Ports

Product Specifications

FeatureCodeDescriptionPRODUCTMMOTORSERIES022000 SERIESDISPLACEMENT04980.6 CM3/R [ 4.92 IN3/R]MOUNTING TYPEAFSTANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 146.0 [5.75] DIA. BOLT CIRCLE. SAE BOUTPUT SHAFT0722.22 [.875] DIA. FLAT ROOT SIDE FIT, 13 TOOTH, 16/32 DP 30 DEG. SAE B INVOLUTE SPLINE, 15.2 [.60] MINIMUM FULL SPLINE LENGTHPORTSAA.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTSCASE FLOW OPTION01.4375-20 UNF-2B SAE O-RING PORTLOW PRESSURE RELIEF0NONEPRESSURE FLOW OPTION00NONEGEROLER OPTION1STANDARDSEAL OPTION0STANDARDACCESSORIES00NONESPECIAL FEATURES (HARDWARE)00NONESPECIAL FEATURES (ASSEMBLY)00NONEPAINT/PACKAGINGAANO PAINT, INDIVIDUAL BOXCUSTOMER IDENTIFICATIONAANONEDESIGN CODEFSIXTH
